Scopebox GT-02-2 4-Channel Oscilloscope

The high-resolution 4-channel oscilloscope is designed for professionals who demand accurate and efficient waveform analysis. This advanced oscilloscope allows users to easily record and playback high-resolution waveform data with the press of a single key, making data analysis more accessible and saving time. With a 70% improvement in waveform capture efficiency compared to other models, this oscilloscope simplifies your workflow, allowing you to focus on critical tasks. The device features 23 automatic measurement variants, all visible on a single screen, increasing operational efficiency by allowing easy switching between measurements. A virtual keyboard further increases productivity by allowing direct entry of names and characters, leading to a 90% increase in overall efficiency.

Equipped with a substantial 50M buffer memory, the oscilloscope can store large amounts of data, while its zoom in/out feature provides detailed waveform analysis. Users can save customized system settings as configuration files for quick setup, and the auto-calibration function ensures that the signal path is optimized for maximum accuracy. The oscilloscope also offers advanced waveform math operations, including addition, subtraction, multiplication, and FFT functions, meeting complex analysis needs. With support for multiple automotive tests, a multilingual interface, and USB Sync data transfer, this oscilloscope is versatile and easy to use, making it an essential tool for professionals in a variety of fields.

Features

• High-Resolution Data Recording: Effortlessly records and plays back high-resolution waveform data, simplifying data analysis.

• Efficient waveform capture: A single key operation makes waveform capture 70% more efficient than traditional oscilloscopes.
  23 automatic measurements: View and switch between 23 measurement variants on one screen for greater operational efficiency.

• Virtual keyboard: Direct input of name and character through a virtual keyboard, increasing efficiency by 90%.

• Buffer Memory: Store large amounts of data with up to 50M buffer memory capacity.

• Zoom in/out feature: Allows detailed review of waveforms for accurate analysis.

• Customizable system settings: Save system settings as configuration files for quick and easy setup.

• Auto-calibration function: Optimizes the oscilloscope's signal path for maximum accuracy.

• Advanced waveform math: Perform addition, subtraction, multiplication, and FFT functions for in-depth waveform analysis.

• Automotive Test Support: Compatible with multiple automotive test protocols.

• Multilingual Interface: User-friendly interface supports multiple languages ​​for global usability.

• USB Sync Data Transfer: Easily transfer data to external devices via USB for later analysis or storage.

Specifications

• Channels: 4

• Bandwidth: 100 MHz

• Rise time: ≤3.5 ns (typical)

• Accuracy: ±3%

• Input impedance: 1 MΩ±1.5%

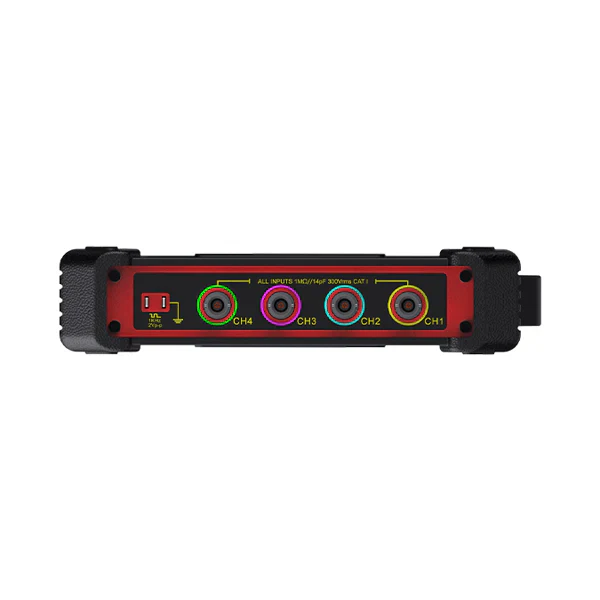

• Input Type: Single-ended BNC connector

• Input coupling: DC, AC

• Overload protection: ±200 V on single input

• Timebase intervals: 1 ns1ks (1 channel), 1 ns1ks (2 channels), 1 ns~1ks (4 channels)

• Vertical resolution: 8 bits

• Buffer memory: 10M (for 4 channels)

• Power interface: USB port, DC IN port

• Data exchange: via USB

• Shooting mode: Normal, Auto and single SEQ

• Advanced Triggers: Edge, Pulse Width
