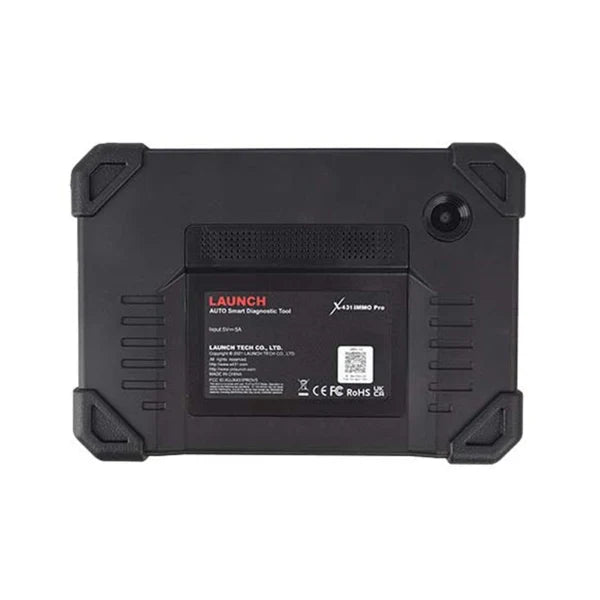

Professional Car Diagnostics & Key Programmer X-431 IMMO PRO

Launch X-431 IMMO PRO is an advanced car diagnostic and key programming tool designed to meet the needs of locksmiths and workshops dealing with a wide range of car models. Equipped with cutting-edge technology and wide vehicle coverage, this device offers comprehensive diagnostic capabilities and key programming functionalities.

Features

• Advanced IMMO/Anti-theft Features: X-431 IMMO PRO supports key and immobilizer programming, chipset read/write, EEPROM read/write and key adding, among other advanced anti-theft features.

• Advanced Diagnostic Functions: With over 110 comprehensive diagnostic models including bidirectional control, ECU coding and programming, this tool enables complete vehicle diagnostics.

• 3-Year Software Updates: Users benefit from continuous updates and improvements, ensuring the device remains up to date with the latest advancements and vehicle models.

• Key Programming Function: Supports key matching/copying, anti-theft IC reading and writing, ECU reading and writing and more, meeting various key programming needs.

• Wireless and Wired Diagnostics: Offers flexibility with both wireless and wired diagnostic capabilities, providing convenience and ease of use.

• Comprehensive Information Center: Access vehicle repair information and the latest updates conveniently in one place, streamlining the diagnosis and repair process.

• Vehicle Coverage: With coverage for over 110 models including Australian, Asian, European, American and Chinese vehicles, X-431 IMMO PRO is compatible with a wide range of car makes and models.

Specifications

• Processor: 2.0 GHz, Quad-Core

• Operating system: Android 10.0

• Memory: 4 GB

• Storage: 64 GB

• Battery: 47.88 Wh (7.6 V, 6300 mAh)

• Screen: 8 inch, 1280*800

• Camera: Rear 8 MP

• WIFI: 2.4GHz / 5GHz

• Interface: TYPE A 1 and TYPE C1

• Working temperature: 0~50℃

• Dimension: 234 x 166 x 39.5mm

DBSCar VII:

• Working voltage: DC 9 - 18 V

• Communication: Bluetooth

• Indicators: On: Connect to a vehicle; Vehicle blinking: When the VCI is communicating with the vehicle's ECU

• Dimension: 118.3 x 69.5 x 32mm

X-PROG3:

• Input voltage: DC12V

• Input current: 500mA

• Working temperature: 0-50℃

• Storage temperature: -20-70℃

• Vehicle Key Slot: To place car key for RF defection

• DB26: used to connect to each anti-theft cable

• Infrared slot for Benz key: used to place the infrared key
• Mercedes-Benz to perform key matching function

• Key IC hole: used to place the key chip to perform the key matching function

• Status indicator: Power supply indicator lamp

• DIY Slot: Used to connect the anti-theft ECU pin through the cable to read and write data

• Locker: to tighten the loose EEPROM board

• DC 12V: Used to connect to DC12 power supply

• DB15: to connect with vehicle DLC

• EEPROM Slot: To insert the EEPROM board
