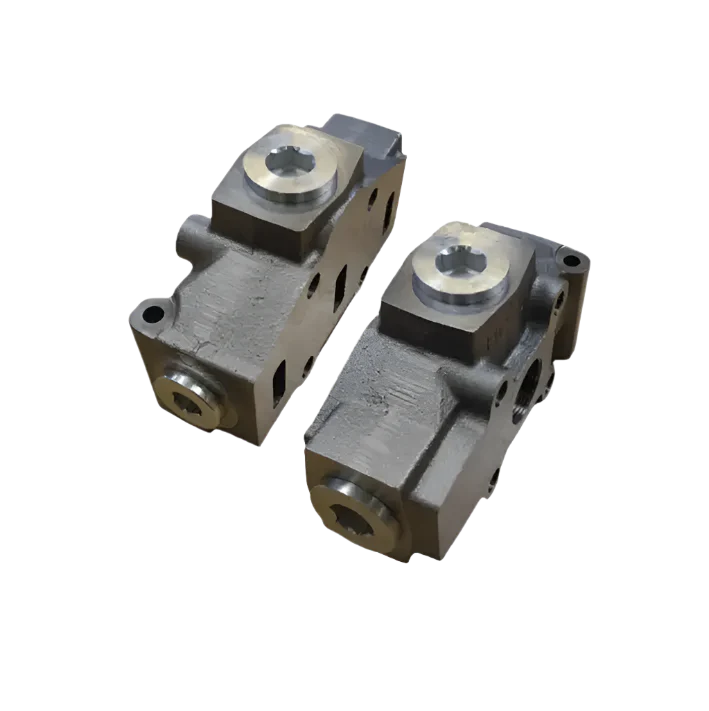

Single return top outlet section

Specifications

• HC-D20 Outlet Section with Single Return (T) Left Side Inlet (P)

• Single Tank Output Rating

• Output at (T) and input at (P)

• T-Port Sizes: 1 1/4” BSP | -G20

• Output position: top output

• Flow Rate: 66 Gpm

• Pressure rating: 5000 Psi | 345 Bar

• Max flow: 250 Lpm

• Maximum pressure at (T): 290 Psi | 20 Bar

• Operating temperature: -25°C to +80°C

• Kinematic viscosity: from 10 to 460 mm²/S

• Contamination level: 19/16 ISO 4406

• Filtration level: β 10 > 75

• For use with HC-D20-I input section and HC-D20-W-PR output sections
