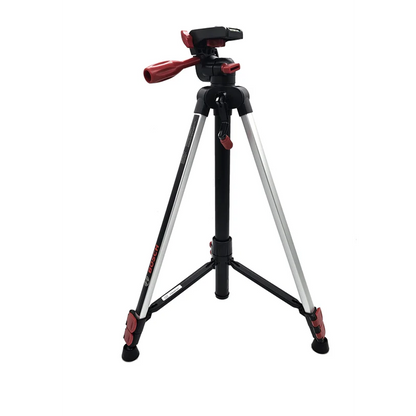

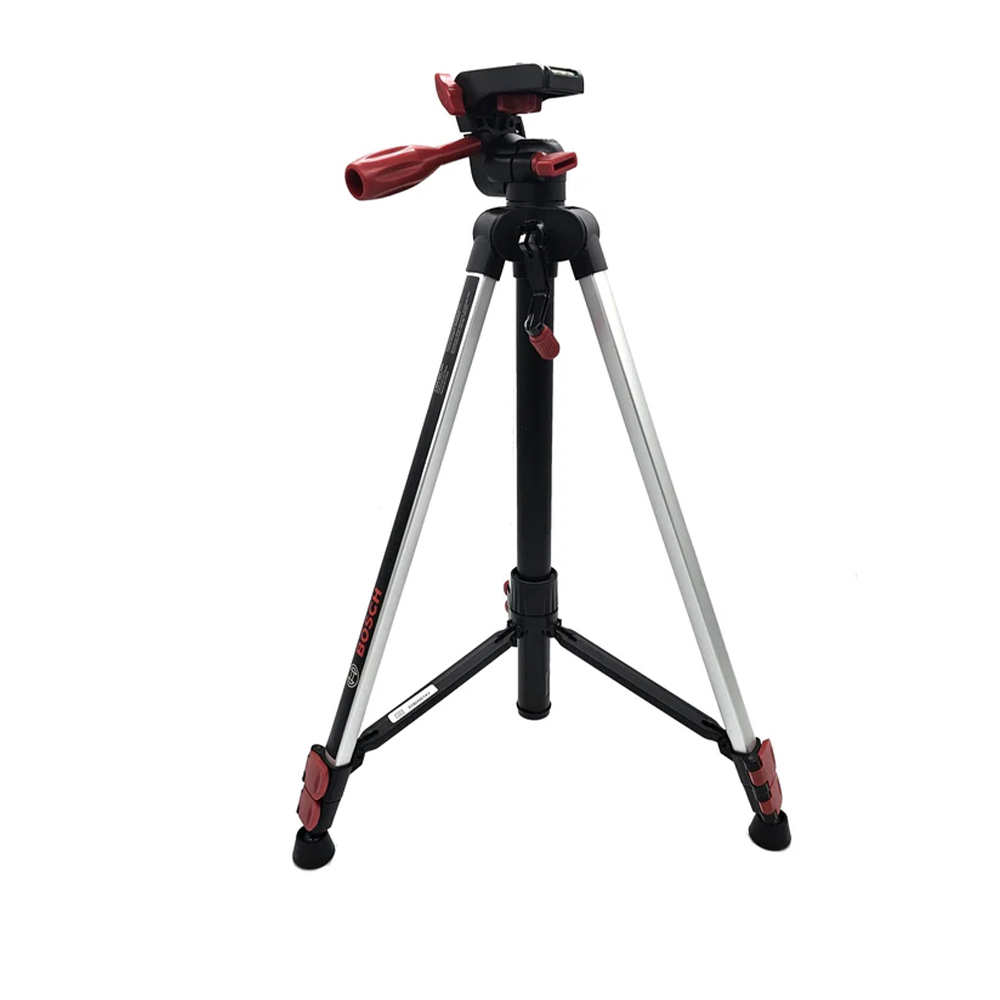

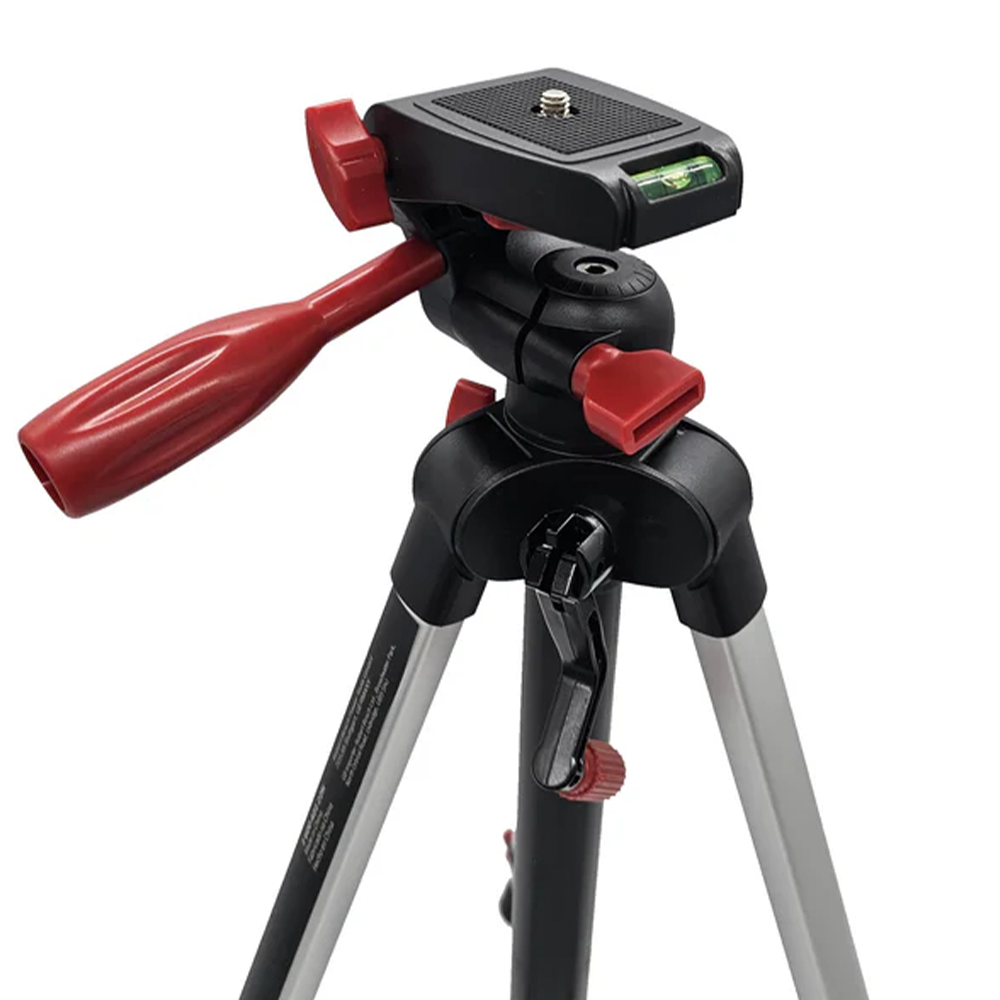

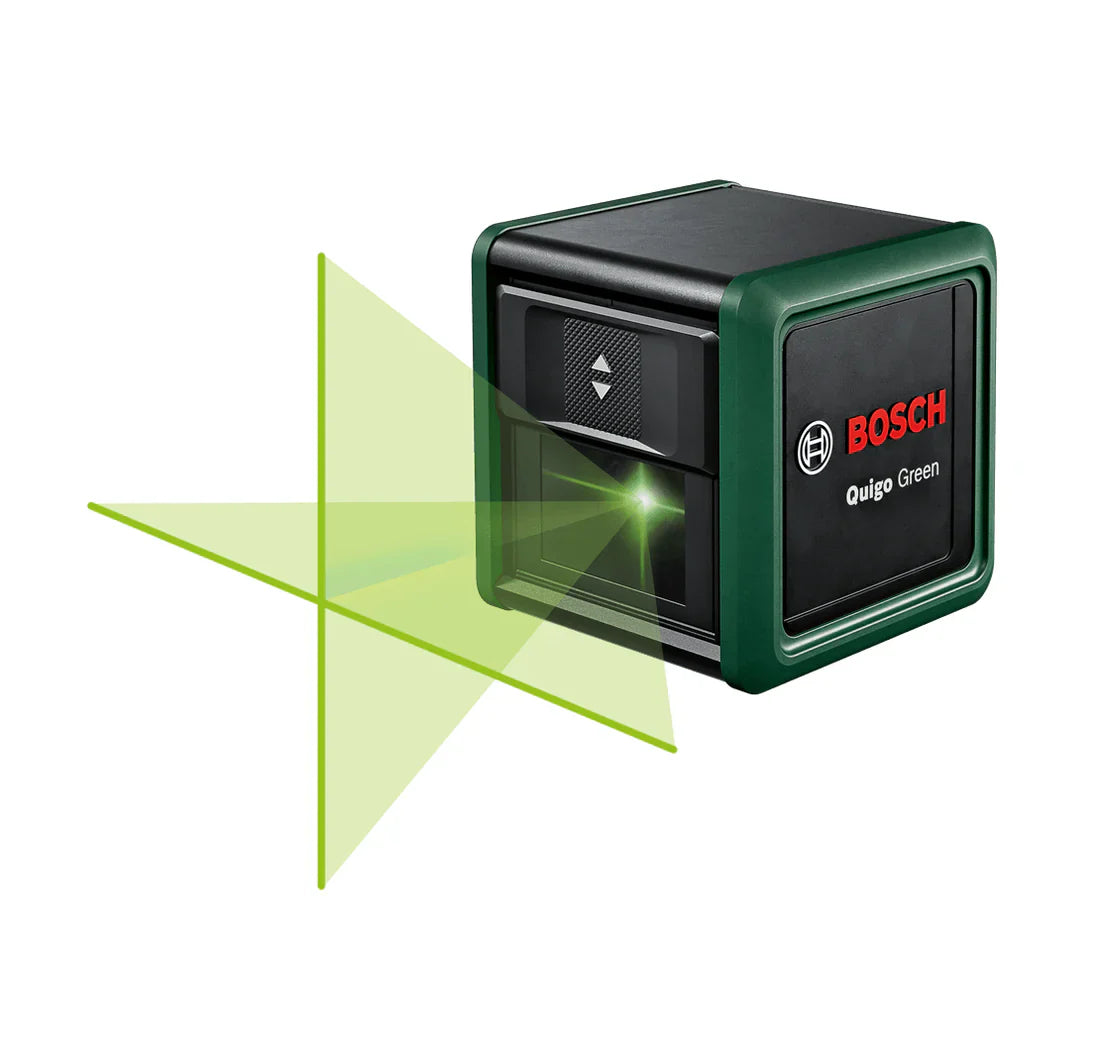

Quigo Green Self-Leveling Cross Line Laser with Tripod

Go completely green with the new generation Quigo Green cross-line laser from Bosch, providing high visibility and easy handling for DIY projects. With its intense green cross-line laser lines, the Quigo Green is the perfect alignment solution for working in very bright lighting conditions. It provides improved accuracy of +/- 0.6 mm/m and a working range of up to 12 m.

Quigo Green uses mainly recycled material for housings, accessories and packaging and has optimized energy consumption. For added convenience, this versatile cross line laser comes with a MM 2 universal clamp and an adapter plate for easy mounting. Both are also made from recycled plastic. Quigo Green levels itself within a range of +/-4° to ensure straight positioning of mirrors, shelves or tiles.

• Green laser technology for up to 4x better visibility than red laser lines, even in bright lighting conditions

• Improved accuracy of +/- 0.6 mm/m and working range of up to 12 m

• Recycled materials in products and packaging as well as optimized energy consumption contribute to sustainability

• Easy positioning with adapter plate and MM 2 universal clamp

• Perfect for hanging pictures, laying tiles, installing curtain rails and installing kitchen furniture

Quigo Green is proud to be labeled as a solar boost solution

• For Quigo Green, we changed most of the plastic components from native material to recycled material.

• In addition, we have redesigned the electronic concept for greater energy efficiency, effectively extending battery life and causing less waste during use.

• We have also re-evaluated our product packaging, optimizing the size for an ideal palletized load, implementing a greater amount of recycled paper and eliminating all single-use plastic in our packaging.

Versatile universal clamp MM 2 made from recycled plastic

• Adjust the laser level to the correct position with the versatile MM 2 universal clamp, which can be attached to objects with a diameter of 1 to 6 cm

Easy-to-attach adapter plate made from recycled plastic

• Easy-to-handle adapter plate provides more flexible mounting options and even greater precision for fine height adjustments

• It can be attached to the top, bottom or back of the tool and has a fine height adjustment range of +/- 2cm

Up to 4x better visibility thanks to green laser technology

• Green laser diode provides up to four times better visibility than red laser lines and helps extend the working range by up to 12 m

Exceptional accuracy for precise results

• High-quality green laser diode provides bright and precise laser lines with a working range of 12 m and accuracy of +/- 0.6 mm/m for perfect results

Straight laser lines even on slightly uneven surfaces

• Self-leveling in a flash – automatically projects a straight laser cross in seconds, even on slightly uneven surfaces, within +/- 4°. Simply push the slider up to project the laser

Specifications

• Laser diode: 500 – 540 nm

• Laser class: 2

• Self-leveling time, type: 6s

• Leveling range: ± 4°

• Opening angle: 85°

• Accuracy**: ± 0.6mm/m

• Tripod thread: 1/4"

• Weight: 0.27kg

• Battery: 2x1.5V LR03 (AAA)

• Working range, approx.: 12m
