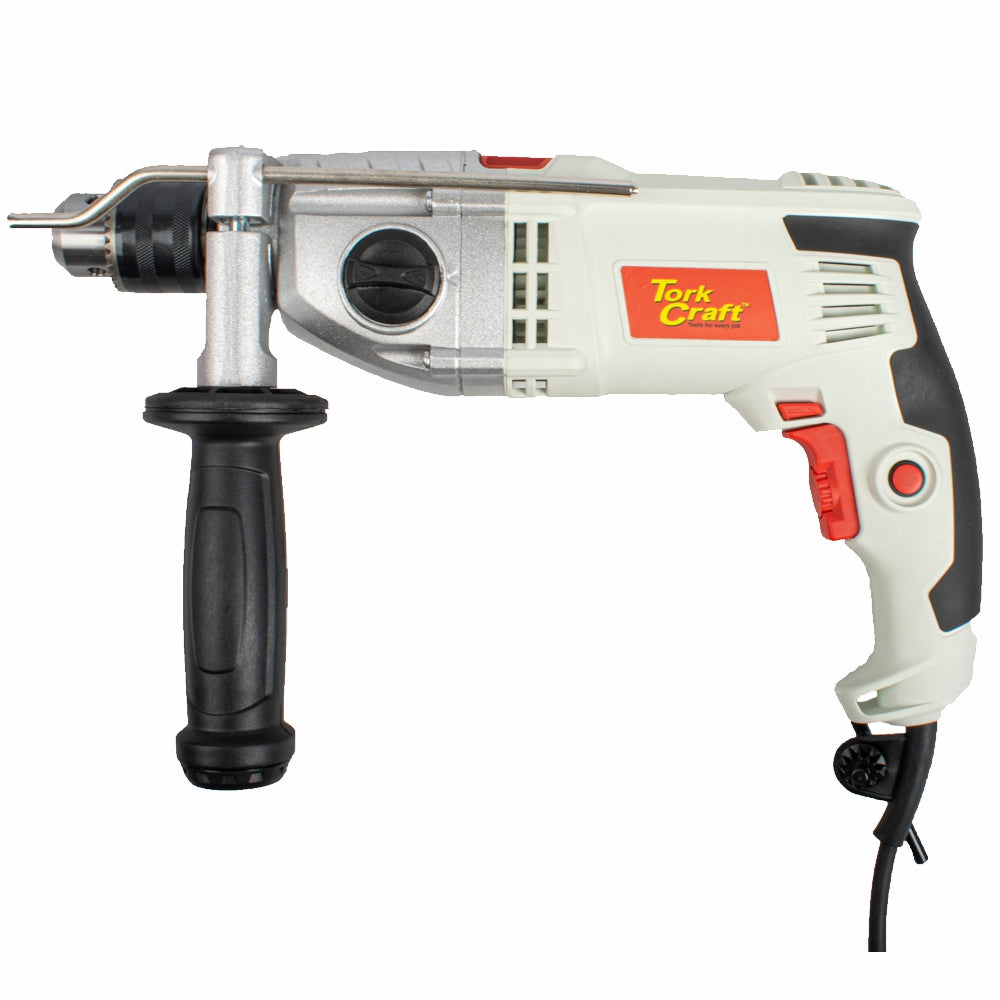

13mm Impact Drill 1100W 1200/3200rpm 220V 2 Speeds

Drilling in various types of steel, plastic, wood and masonry using a variety of drill bits and accessories.

• Max RPM: Gear 1 = 0-1200 and Gear 2 = 0-3200

• Gear 1 Low: 850 RPM

• Gear 1 Medium: 1050RPM

• Gear 1 max: 1275 RPM

• Gear 2 Low: 2600 RPM

• Gear 2 Medium: 2900RPM

• Gear 2 max: 3200 RPM

• Maximum chuck capacity: 13 mm (keyed)

• Drilling capacity: wood 23mm, steel 13mm and masonry 13mm

• Maximum Impact Rate: Gear 1 = 0-19200 and Gear 2 = 0-44800 BPM

• Power: 1100W

• Voltage: 220-240 (50Hz)

• Modes: Drill and Hammer

• Variable speed control selector

• Trigger lock on button

Accessories included

• Impact drill

• Chuck key

• Depth limiter rod

• Auxiliary handle


Installing Accessory Bits

Use the supplied chuck key to lock/unlock. Turn the chuck counterclockwise until the chuck opening is large enough to accommodate the accessory. Insert the accessory into the chuck. Turn the collar clockwise until the tool is securely attached. Use the chuck key to properly lock the chuck.

Installing the auxiliary handle

To mount the auxiliary handle, loosen the screw on the handle by turning the plastic part counterclockwise. Mount the handle over the chuck collar until it is flush with the flat surface on the front of the drill. Turn the plastic part of the handle clockwise to secure it in place.

Trigger lock

To lock the trigger, press the lock button located on the side of the handle with one hand, while the other hand presses the trigger.

Rotation setting

Reverse: To select reverse rotation, push the lever to the right side of the drill. Forward: To select forward rotation, release the power button and push the lever to the left side of the tool.

Gear selection

Turn the gear selector switch to gear 1 or gear 2, depending on the desired speed and application.
