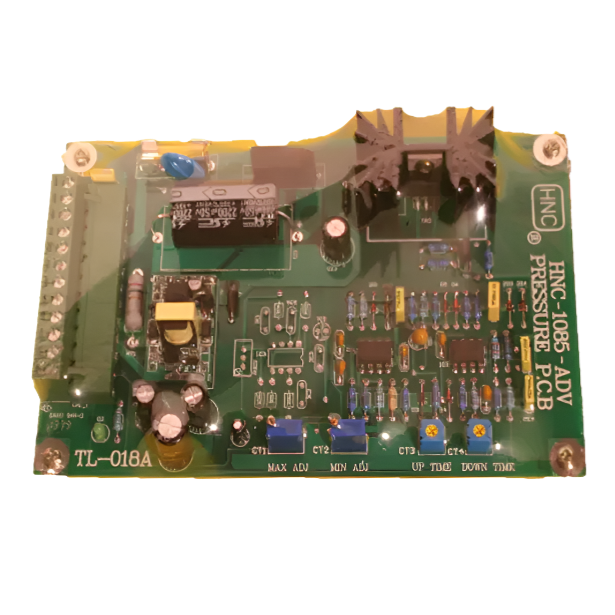

Printed circuit board for electronic amplifier

Specifications

• HNC-1085 electric amplifier

• HNC-4075 Electric Amplifier
• Particularly for pressure control valves

• Load coil resistance: 10Ω/20°C

• And power supply: AC 28V+/-20%

• Together with the fuse: 2A

• Then the input control voltage: 0V~+9V

• And the maximum current output range: 0~850mA

• Then the pilot current adjustment range: 0~150mA

• As well as the ramp up and down time: 0.1~2.5sec

• Also, the maximum power requirement: 115VA

• Maximum ambient temperature: 0~50°C
